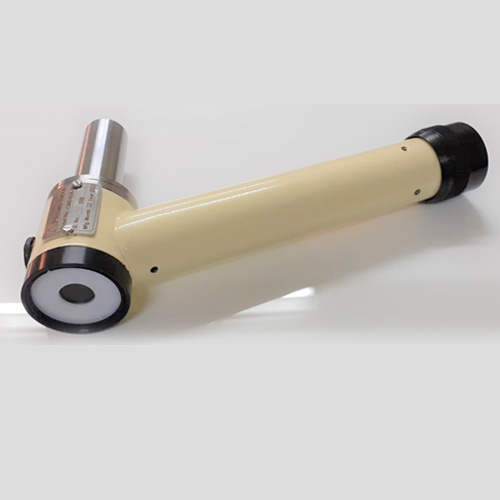

Centering Microscope

The Centering Microscopes are designed for job set-up and inspection with vertical milling machines, large jig borers, boring mills, lathes, electrical discharge machines, tape-controlled machines, drill presses. Three Coordinate Measuring Machines.

Titan Centering Microscopes have an upright image, optically correct from left to right so that the operator sees the workpiece with the microscope the same as without it, mistakes due to transposing or converting are eliminated.

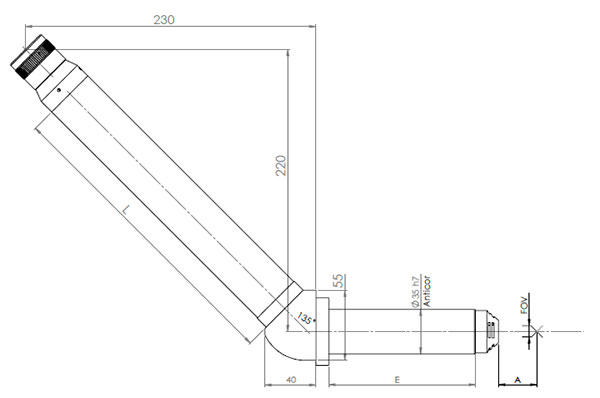

Specification

SHAFT	FOV	A	E	MAG	L
15∅	7	30	125	20X	190
20∅	7	30	125	20X	190
35∅	4.5	30	125	20X	240
42∅	4.5	30	125	20X	240
75∅	4.5	30	125	20X	240
